CUSTODY TRANSFER UNITS

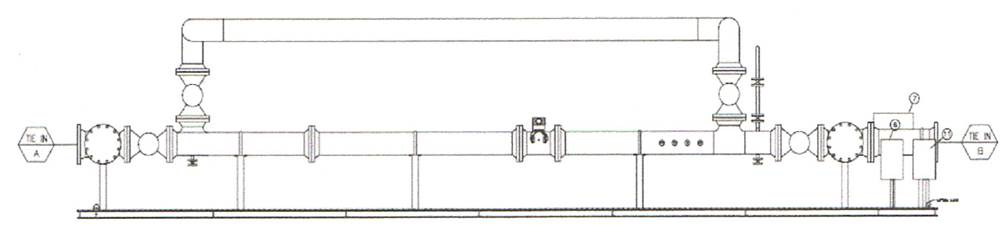

CTS Lease Automatic Custody Transfer (LACT) units are used to accurately measure and transfer oil or gas into a pipeline for ownership transfer.The system continuously monitor quantity and quality of the product.
FEATURES
- Turn-Key systems are designed and built to client specifications.
- Fully automated option allows unattended 24h/7d operation.
- Accurate flow metering and totalizer, suitable for custody transfer.
- Skid mounted assembly.
- Multiple metering runs.
ADVANTAGES
- Maximum uptime and productivity.
- Standardized designs provide a cost effective package.
- Quick delivery times.
- Skid mounted assembly.
- Modular design for easy installation.
SPECIFICATIONS
- Operating flow rate per run: 5,000 - 31,000 BPD.
- Density (Specific Gravity or 0API): 9 - 70 API.
- Operating Pressure: 20 - 1200 psig.
- Control panels suitable for Class 1 Div 2 Area.
APPLICATIONS
- Truck/rail loading/unloading.
- Oil delivery to or from pipelines.
- City Gates.
- Gas transfer systems.
